Kerala Plus Two Chemistry Notes Chapter 10 Haloalkanes and Haloarenes

Haloalkanes and haloarenes are fomed by the replacement of H atom(s) in a hydrocarbon by halogen atom(s).
Haloalkanes – halogen attached to sp³ C.
Haloarenes – halogen linked to sp² C.

Classification
1. Based on the number of halogen atoms:
Mono, di or polyhalogens according to number of halogen atoms.

2. Compounds Containing sp³ C-Xbond:
(a) Alkyl halide or Haloalkanes (R – X):
General formula C_nH_2n+1X.
They are again classified into primary (1°) secondary. (2°) or tertary (3°).

(b) Allylic Halides:
The halogen bonded carbon atom (sp³) is bonded to (C=C)

(c) Benzylic Halides:
halogen atom is bonded to an sp³ hybridised carbon atom next to an a aromatic ring.

3. Compounds Containing sp2 C-X Bond:
(a) Vinylic Halides:
halogen atom is bonded to an sp²– hybridised carbon atom of C=C.

(b) Aryl Halides:
Halogen atom is bonded to sp²– C atom of an aromatic ring. e.g. chlorobenzene.

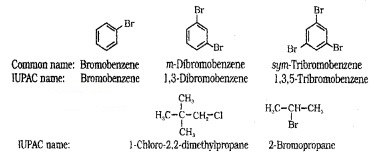

Nomenclature
Common name – Alkyl halides and arylhalides. IUPAC – Haloalkane and haloarene
e.g. CH₃ – CH₂ – CH₂ – Br n-Propyl bromide
1 – Bromopropane (IUPAC) Isobutyl chloride
1 – Chloro – 2 – methylpropane

Nature of C -X Bond
Since the halogen atom is more electronegative than C, the C – X bond of alkylhalide is polarised.

The C – X bond length increases from C – F to C – I.

Methods of Preparation
1. From Alcohols:
The -OH group of an alcohol is replaced by halogen on reaction with halogen acids (HX), PX₃, PCl₅, SOCl_2, etc.

3R – OH + PX₃ H → 3R – X + H₃PO₃ (X = Cl, Br)
R – OH + PCl₅ → R – Cl + POCl₃ + HCl

R – OH + SOCl₂ → R – Cl + SO₂ + HCl
Thionyl chloride (SOCl₂) is preferred because the other two products are escapable gases. Hence the reaction gives pure alkyl halides.

2. From Hydrocarbons:

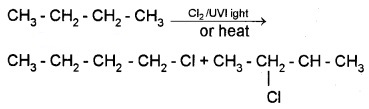

(a) Free RadicalHalogenation:
Free radical chlorination or bromination of alkanes gives mixture of isomers.

(b) Electrophilic Substitution:
Aryl Chlroides and bromides easily prepared by electrophilic substitution of arenes.

(c) Sandmayer’s Reaction:
When a primary aromatic amine, dissolved or suspended in cold aqueous mineral acid, is treated with sodium nitrite, a diazonium salt is formed.

Mixing the solution of the freshly prepared diazonium salt with cuprous chloride (Cu₂Cl₂) or cuprous bromide (Cu₂ Br₂) results in the replacement of the diazo group by -Cl or -Br.

Aryl iodide is prepared by shaking the diazonium salt with potassium iodide.

(d) From Alkanes:
Addition of hydrogen halides to an alkene gives alkyl halide. The addition is according to Markovnikov’s rule.

3. Halogen Exchange:
Finkelstein Reaction: Alkyl iodides are prepared by the reaction of alkyl chlorides/bromides with Nal in dry acetone.
R – X + Nal → R – I + NaX (X = Cl, Br)
Swarts Reaction:
Alkyl fluorides are prepared by heating an alkyl chloride/bromide in the presence of a metallic fluoride such as AgF, Hg₂F₂, CoF₂ or SbF₃.
R – Br + AgF → R – F + AgBr.

Physical Properties
Melting and Boiling Points: Lower members are gases and higher members are liquid or solids. Intermolecular forces of attraction are stronger in the halogen derivatives. Hence bp of chlorides, bromides and iodides are higherthan that of parent hydrocarbon.

The boiling points of alkyl halides decrease in the order Rl > RBr > RCI > RF. The bp of isomeric haloalkanes decrease with increase in branching. The bp of p-isomeric dihalobenzenes are higher than that of o- and m- isomers.

Solubility:
Haloalkanes are only very slightly soluble in water. But they, are soluble in organic solvents.

Chemical Reactions
a. Reactions of Haloalkanes: divided into three:

1. Nucleophilic substitution
2. Elimination reaction
3. Reaction with metals

1. Nucleophilic Substitution Reaction:
The halogen atom is substituted by other nucleophiles.

Nucleophilic substitution of alkyl halides:
R – X + \(\overline{\mathrm{Nu}}\) → R – NU + \(\bar{x}\)
Ambiden nucleophiles:
Groups possessing two nucleophilic centres, e.g. – CN^–, – ONO^–

Mechanism:
(a) Substitution Nucleophilic Bimolecular (S_N2):
Reaction between R – X and Nu follows second order kinetics, i.e., rate depends upon the concentration of both the reactants. Consider the reaction of CH₃ – Cl & OH^–

The incoming nucleophilic interacts with alkyl halide causing the C-X bond to break while forming a new C-OH bond. After the completion of reaction, the configuration of the carbon atom inverts. This process is called inversion of configuration.

The breaking and forming of bond take place simultaneously in a single step and no intermediate is formed. But a transition state is formed.

3° alkyl halides are the least reactive because bulky groups hinder the approaching of nucleophile. Order of reactivity: 1° > 2° > 3° halides.

(b) Substitution nucleophilic unimolecular (S_N1):
Reaction between RX and Nu follows first order kinetics, i.e., rate depends the concentration of only one reactant. It occurs in two steps. In step I, the C – X band undergos slow.cleavage to produce a carbocation and in step II the carbocation is attacked by nucleophile, e.g.

There is no inversion of configuration. 3° carbocation are more stable than 2° and 1 °. Hence the order of reactivity is 3° > 2°> 10 halides.

Allylic and benzylic halides show high reactivity towards S_N1 reaction because the carbocation formed gets stabilised through resonance.

(c) Stereo Chemical Aspects of Nucleophilic Substitution:
S_N2 reaction proceeds with complete stereo-chemical inversion while a S_N1 reaction proceeds with racemisation.

Some Basic Concepts About Stereochemistry:
(i) Optical Activity:
Ability of certain compounds to rotate plane polarised light either to right or left. Such compounds are called optically active compounds. Dextorotary, d-form or (+)-compound which rotate plane polarised light to the right (clockwise direction).

Laevo rotatory, l-form or (-)- compound which rotate plane polarised light to the right (anticlockwise direction).

The (+) and (-) isomers of a compound are called optical isomers and the phenomenon is termed as optical isomerism.

(ii) Molecular assymmetry:
If all the atoms/substituents attached to the carbon atom are different, the carbon atom is called assymnietric carbon or stereocentre. The assymmetry of the molecule is responsible for optical activity.

Chirality:
Objects which are non-super impossable on their mirror image are said to be chiral and this property is known as chirality. The objects which are super impossible mirror images are called achiral.

Enantiomers:
Stereo isomers related to each other as non-super impossible mirror images of each other and which rotate the plane polarised light equally but in opposite directions.

They have identical physical properties. They only differ with respect to the rotation of plane polarised light. If one of the enantiomers is dextrorotary, the other will be laevo rotatory.

Racemic misture-mixture containing two enantiomers in equal proportions. It has zero optical rotation, i.e., optically inactive.

Racemisation-process of conversion of enantiomer into racemic mixture. A racemic mixture is represented by prefixing dl or (±) before the name.

(iii) Retention of configuration:
preservation of integrity of the spatial arrangement of bonds to an asymmetric centre during a chemical reaction or transformation. e.g. XCabc is converted into YCabc

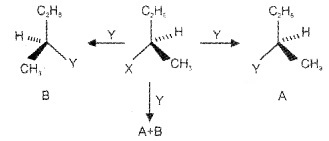

(iv) Inversion, Retension and Racermisation

Retention of configuration – Compound A’only. Inversion of configuration – Compound ‘B’only. Racemisation – 50:50 mixture (A+B).

S_N2 & S_N1 Reactions of Optically Active Alkyl Halides: The product formed as a result of S_N2 mechanism has the inverted configuration as compared to the reactant because the Nu attaches itself on the side opposite to the one where the halogen atom is present. S_N1 reactions are accompanied by racemisation due to planar structure of carbocation.

2. Elimination Reactions:
When a haloalkanes with β – H atom is heated with alcoholic solution of KOH, there is elimination of H from β – C and a halogen atom from the α – C. Since β – H atom is involved in elimination, it is called β – elimination.

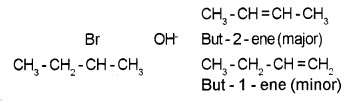

Saytzeff Rule or (Zaitsev Rule):
In dehydrohalogenation reactions, the preferred product is that alkene which has the greater number of alkyl groups attached to the doubfy bonded carbon atoms. i.e., the more substituted alkene is the major product.

3. Reaction with Metals:
Alkyl halides react with certain metals, organo-metallic compounds are formed. Alkyl halides react with Mg in presence of dry ether to form alkyl magnesium halide (Grignard reagent).

Grignard reagents react with water to form hydrocarbons.
R – MgX + H₂O → R – H + Mg(OH)X.

Wurtz Reaction:
Alkyl halide react with sodium in dry ether give hydrocarbons with even number of carbon atoms, i.e., double the number of carbon atoms present in the halide.
2R – X + 2Na R → R + 2 NaX

b. Reactions of Haloarenes:
Aryl halides are extremely less reactive towards SN reactions due to the following reasons:
(i) Resonance effect:

C-Cl bond acquires a partial double bond character. Hence, cleavage of C – X bond is difficult.

(ii) Difference in Hybridisation of C in C – X bond:

(iii) Instability of phenyl cation: the phenyl cation formed as a result of self-ionization will not be stabilized by resonance.

(iv) Steric repulsion: it is less likely for the electron-rich nucleophile to approach electron-rich arenes.

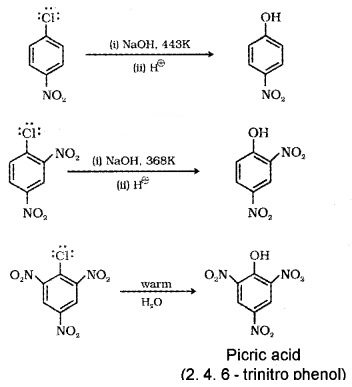

Replacement by Hydroxyl Group:

The presence of an electron-withdrawing group (-NO₂) at

1. Electrophilic Substitution Reactions: Halogen atoms are slightly deactivating (-I effect) and are o, p- directing (+R effect).

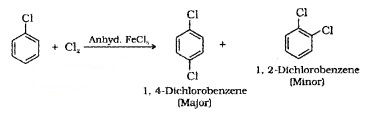

(i) Halogenation:

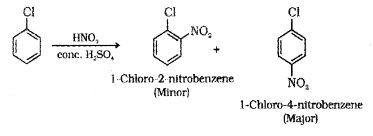

(ii) Nitration:

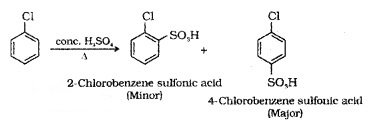

(iii) Sulphonation:

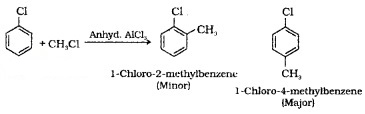

(iv) Friedel-Crafts Alkylation:

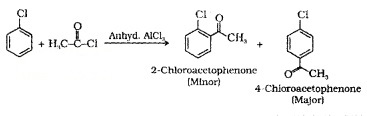

(v) Friedel-Crafts Acylation:

3. Reaction with Metals:
Wurtz – Fittig Reation:
A mixture of an alkyl halide and aryl halide gives an alkylarene when treated with sodium in dry ether.

Fittig Reaction:
Aryl halides when treated with sodium in dry ether, diaryls are formed in which the aryl groups are joined together.

Polyhalogen Compounds
(1) Dichloromethane (Methylene Chloride), CH₂Cl₂:
Used as a solvent, as a paint remover, as propellent in aerosols and in manufacture of drugs. It is harmful to human central nervous system. It causes dizziness, nausea, direct contact with the eyes can burn the cornea.

(2) Trichloromethane (Chloroform), CHCl₃:
Employed as a solvent for fats, alkaloids. It was once used as general anaesthetic. Inhaling it depresses central nervous system. It is slowly oxidised by air in presence of light to form an extremely poisonous gas, carbonyl chloride known as phosgene. Hence it is stored in dark coloured bottles completely filled so that air is kept out.

(3) Tniodomethane (Iodoform), CHl₃:
Used as antiseptic in earlier times. The antiseptic properties is due to liberation of free iodine.

(4) Tetrachloromethane (Carbond Tetrachloride), CCl₄:
Used as a solvent, as cleaning fluid, as spot remover, as fire extinguisher. Adverse effects:vomitting, dizziness, permanent damage to nerve cells, stupor, coma, liver cancer, skin cancer, eye diseases, damage to immune system.

(5) Freons:
The chloroflurocarbon compounds of methane and ethane are collectively known as freons. Freon 12 (CCl₂Fl₂) is one of the most common freons in industrial use. It causes ozone depletion.

(6) DDT – Dichlorodiphenyltrichloroethane:
First chlorinated organic insecticides. It is effective against mosquito, lice. The chemical stability of DDT and its fat solubility are the main problems. DDT is not metabolised very rapidly by animals; instead, it is deposited and stored in the fatty tissues.
