Plus One Computer Science Chapter Wise previous Questions Chapter 2 Data Representation and Boolean Algebra

Kerala Plus One Computer Science Chapter Wise Previous Questions Chapter 2 Data Representation and Boolean Algebra

Question 1.
the complement of the binary number 110111 is …………… (Hint: Use 8 bit form) (March – 2016)
Answer:
Insert 2 zeroes in the left-hand side to make the binary number in the 8 bit form 00110111
To find the l’s complement, change all zeroes to one and all ones to zero.
Hence the answer is 11001000

Question 2.
Express the integer number – 39 in sign and magnitude representation (March – 2016)
Answer:
First find the binary equivalent of 39 for this do the following

In sign and magnitude representation – 39 in 8 bit form is (101 00111)₂.

Question 3.
Perform the following number conversions. (Sep – 2016)
a) (110111011.11O11)₂ = (….)_B
b) (128.25)₁₀ = (……)_B
Answer:
a) 110111011.11011
Step 1: Insert a zero in the right side of the above number and divide the number into groups of 3 bits as follows
110 111 011 110 110
Step 2: Write down the corresponding 3 bit binary equivalent of each group
6 7 3 6 6
hence the result is (673.66)₈

b) It consists of 2 steps,
Step 1: First convert 128 into octal number for this do the following

Write down the remainders from bottom to top.
(128)₁₀ = (200)₈

Step 2 : Then convert .25 into octal number for this do the following

Combine the above two will be the result.
(128.25)₁₀ = (200.2)₈

Question 4.
Represent – 38 in 2s complement form. (March – 2017)
Answer:
+38 = 00100110
First take the I ‘s complement for this change all 1 to 0 and all 0 to 1
-38 11011001+

∴ 2’s complement 0f-38 is (11011010)2

Question 5.
18.Draw the logic circuit for the function (Say -2015 (Imp)
f(ab1c) = a.b.c + \(\bar{a}\).b + a\(\bar{b}\) + a.b.\(\bar{c}\)
OR
Prove algebrically
x.y + x.\(\bar{y}\) = x.y. + xz
Answer:

Question 6.
Following are the numbers in various number systems. Two of the numbers are same. Identify them: (March – 2016)
a) (310)₈
b) (1010010)₂
C) (C8)₁₆
d) (201)₁₀
OR
Consider the following Boolean expression: (B’+A) BA’
Identify the law behind the above expression and prove it using the algebraic method.
(B’+A)’ = BA’
Answer:

Question 7.
With the help of a neat circuit diagram, prove that the NAND gate is a universal gate. (Say – 2016)
Answer:

Question 8.

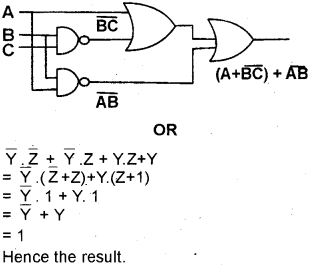

Boolean expression: (March – 2017)

Using the algebraic method, prove that

Answer:
