Ship Construction is a dynamic subject that continuously shifts from one perspective to another. However, the technicality is the same even if the theories and perspectives vary. Hence to gain knowledge in this subject you must be equipped with more vicious on the syllabus.
In this article, we tried to provide the required syllabus of the MV3304 Ship Construction subject to gain command of the subject matter. By the end of the course, you will be trained and guided with useful knowledge regarding technical english, which plays a major role in understanding the core of this B.E Marine Engineering semester III related to Affiliated institutions awarded by Anna University course. Hope this information is useful. Kindly share it with your friends. Comment below if you have queries regarding the syllabus.
If you want to know more about the syllabus of B.E. Marine Engineering connected to an affiliated institution’s four-year undergraduate degree program. We provide you with a detailed Year-wise, semester-wise, and Subject-wise syllabus in the following link B.E. Marine Engineering Syllabus Regulation 2021 Anna University.
Aim Of Concept:
- Understand the Ships terms and stresses onboard ships structure.
- Determine the Primary and Secondary girders used onboard ships.
- Distinguish between Fore-end and After-end arrangements onboard ships.
- Understand the free board and Tonnage onboard ships.
- Acquire the knowledge of Offshore Technology and Ship’s Survey.

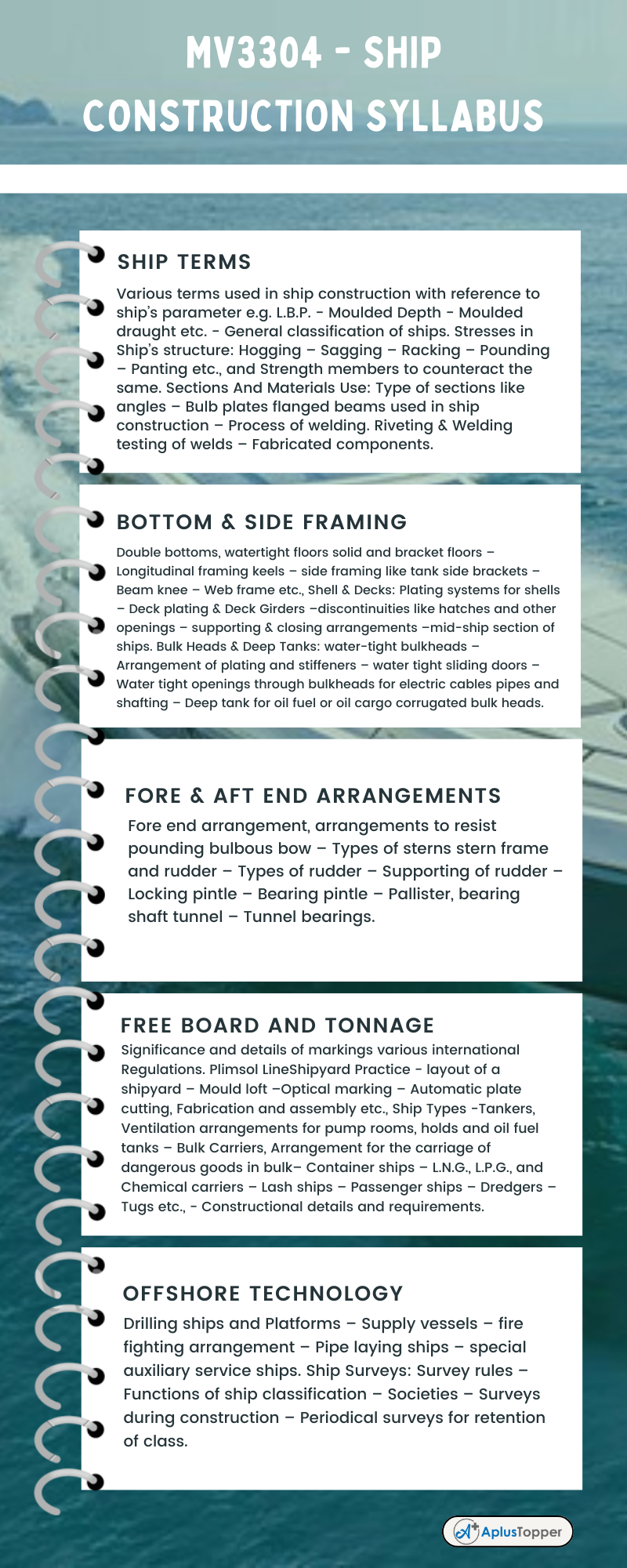

MV3304 – Ship Construction Syllabus
Unit I: Ship Terms
Various terms used in ship construction with reference to ship’s parameter e.g. L.B.P. – Moulded Depth – Moulded draught etc. – General classification of ships. Stresses in Ship’s structure: Hogging – Sagging – Racking – Pounding – Panting etc., and Strength members to counteract the same. Sections And Materials Use: Type of sections like angles – Bulb plates flanged beams used in ship construction – Process of welding. Riveting & Welding testing of welds – Fabricated components.
Unit II: Bottom & Side Framing
Double bottoms, watertight floors solid and bracket floors – Longitudinal framing keels – side framing like tank side brackets – Beam knee – Web frame etc., Shell & Decks: Plating systems for shells – Deck plating & Deck Girders –discontinuities like hatches and other openings – supporting & closing arrangements –mid-ship section of ships. Bulk Heads & Deep Tanks: water-tight bulkheads – Arrangement of plating and stiffeners – water tight sliding doors – Water tight openings through bulkheads for electric cables pipes and shafting – Deep tank for oil fuel or oil cargo corrugated bulk heads.
Unit III: Fore & Aft End Arrangements
Fore end arrangement, arrangements to resist pounding bulbous bow – Types of sterns stern frame and rudder – Types of rudder – Supporting of rudder – Locking pintle – Bearing pintle – Pallister, bearing shaft tunnel – Tunnel bearings.
Unit IV: Free Board And Tonnage
Significance and details of markings various international Regulations. Plimsol LineShipyard Practice – layout of a shipyard – Mould loft –Optical marking – Automatic plate cutting, Fabrication and assembly etc., Ship Types -Tankers, Ventilation arrangements for pump rooms, holds and oil fuel tanks – Bulk Carriers, Arrangement for the carriage of dangerous goods in bulk– Container ships – L.N.G., L.P.G., and Chemical carriers – Lash ships – Passenger ships – Dredgers – Tugs etc., – Constructional details and requirements.
Unit V: Offshore Technology
Drilling ships and Platforms – Supply vessels – fire fighting arrangement – Pipe laying ships – special auxiliary service ships. Ship Surveys: Survey rules – Functions of ship classification – Societies – Surveys during construction – Periodical surveys for retention of class.
Text Books:
- D.J. Eyres, “Ship Construction”, 4th Edition, Butterworth – Heinemann, Oxford, 1994.
- Stokoe, E.A., “Reed’s Ship Construction for Marine Engineers”, 1st Edition, Thomas Reed Publication, London, 2000.
- Thomas Lamb, “ Ship Design and Construction”, 1st Ed., SNAME, 2003
References:
- A.J. Young, “Ship Construction Sketch & Notes”, 1st Edition, Butterworth – Heinemann, London,1980.
- H.J. Pursey, “Merchant Ship Construction”, 7th Edition, Brown Son & Ferguson Ltd. GlasGow Great Britain, 1994.
- Larrie D. Ferreiro, “ Ships and Science”, 1 st Ed. SNAME, 2006
- Richard Lee Storch, Colin P. Hammon, Howard McRaven Bunch, and Richard C. Moore, “Ship Production, 1st Ed., SNAME,1995.
