This article code MF3401 explains the subject syllabus of Anna University B.E Manufacturing Engineering fourth semester. We aim to provide the engineering metrology and computer-aided inspection syllabus based on regulation 2021.

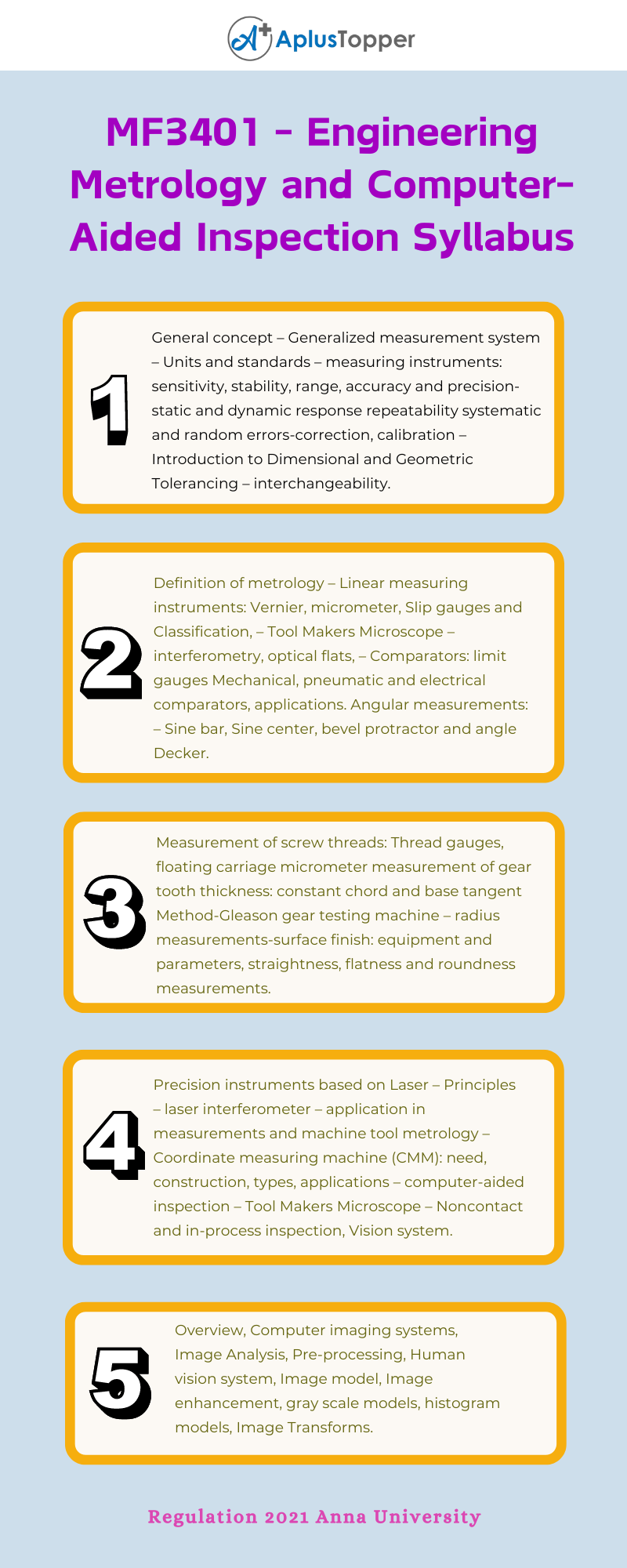

We intend to give helpful information regarding the syllabus Of Anna University B.E Manufacturing Engineering students. Subject code MF3401 – Engineering Metrology and Computer-Aided Inspection syllabus assists the students in getting unit-wise info without leaving a topic from the syllabus. We included the required textbooks and references. The following image we added in this article will help you just by reading you will be able to get the whole syllabus of this subject. Hope you find this information useful. Never forget to share with your friends if you like this information. Comment below if you have any doubts regarding the syllabus of the subject.
If you want to know more about the syllabus of B.E. Manufacturing Engineering connected to an affiliated institution’s four-year undergraduate degree program. We provide you with a detailed Year-wise, semester-wise, and Subject-wise syllabus in the following link B.E. Manufacturing Engineering Syllabus Anna University Regulation 2021.
Aim Of Objectives:
- To impart the basics of metrology, measurement concepts and perform measurement tasks accurately.
- To identify the right measurement practices for linear and angular measurements.
- To be familiarized with the right instrument and method of measurement for surface finish and form measurements.
- To describe the various measurement techniques using laser metrology.
- To gain knowledge on computer-aided inspection and advances in metrology.
MF3401 – Engineering Metrology and Computer-Aided Inspection Syllabus
Unit – I: Concept Of Measurement
General concept – Generalized measurement system – Units and standards – measuring instruments: sensitivity, stability, range, accuracy and precision-static and dynamic response repeatability systematic and random errors-correction, calibration – Introduction to Dimensional and Geometric Tolerancing – interchangeability.
Unit – II: Linear And Angular Measurement
Definition of metrology – Linear measuring instruments: Vernier, micrometer, Slip gauges and Classification, – Tool Makers Microscope – interferometry, optical flats, – Comparators: limit gauges Mechanical, pneumatic and electrical comparators, applications. Angular measurements: – Sine bar, Sine center, bevel protractor and angle Decker.
Unit – III: Form Measurement
Measurement of screw threads: Thread gauges, floating carriage micrometer measurement of gear tooth thickness: constant chord and base tangent Method-Gleason gear testing machine – radius measurements-surface finish: equipment and parameters, straightness, flatness and roundness measurements.
Unit – IV: Laser And Advances In Metrology
Precision instruments based on Laser – Principles – laser interferometer – application in measurements and machine tool metrology – Coordinate measuring machine (CMM): need, construction, types, applications – computer-aided inspection – Tool Makers Microscope – Noncontact and in-process inspection, Vision system.
Unit – V: Image Processing
Overview, Computer imaging systems, Image Analysis, Pre-processing, Human vision system, Image model, Image enhancement, grayscale models, histogram models, Image Transforms.
Text Books:
- Bewoor A.K., and Kulkarni, V.A., “Metrology and Measurement”, Tata McGraw-Hill., India, 2009. ISBN: 978-0070140004.
- Jain R.K., “Engineering Metrology”, Khanna Publishers., India, 2009.
References:
- Gupta S.C, “Engineering Metrology”, Dhanpat rai Publications, 2005.
- Jayal A.K, “Instrumentation and Mechanical Measurements”, Galgotia Publications 2000.
- “ASTE Handbook of Industries Metrology”, Prentice Hall of India Ltd., India, 1992.
- Galyer J.F.W. and Shotbolt C.R., “Metrology for Engineers”, Cassel O.R., London, 1993, SBN-13: 978-0304318445.
- Rajput R.K., “Engineering Metrology and Instrumentations”, Kataria & Son Publishers., India, 2001.
- Whitehouse D.J., “The Handbook of Surface and Nanometrology”, 2nd Edition, CRC Press., United States, 2011, ISBN: 9781420082029.
