How do you Determine the Direction of the Magnetic Field
Magnetic field due to current carrying wire
1. Straight wire :

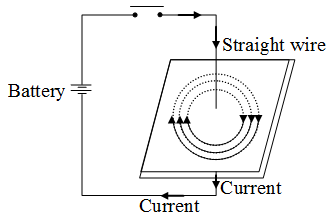

It means that when the current flows in a straight wire, the magnetic field produced has circular lines of force surrounding the wire, having their centres at the wire as shown in fig. The plane of circular lines is perpendicular to the length of the wire. Their direction is marked by arrows.
Fig. (a) Current straight, magnetic field circular
People also ask
- Who discovered the magnet?
- How does a magnet work?
- What are the Different Types of Magnets?
- Is an electromagnet a temporary or a permanent magnet?
- What is the use of magnet?
- How does an electric bell work using electromagnets?
- What is the Magnetic Field?
- Factors Affecting the Magnitude of the Force on a Current-carrying Conductor
- How Does a Transformer Work?
- What is magnetic force on a current carrying conductor?
- What factors affect the strength of an electromagnet?
- How does a current carrying conductor produces a magnetic field?
- What Is Magnetic Effect Of Electric Current?
- Oersted Experiment on Magnetic Effect of Current
- What is the Meaning of Magnetic Force?
2. Circular coil :
fig, (b) Current circular, magnetic field straight
It means that when the current flows in a circular wire (coil), the magnetic field produced has straight lines of force near the centre of the coil, as shown in figure. The parallel lines are in a plane perpendicular to the plane of the coil. Their direction is marked by the arrows.
Rule : The direction of the magnetic lines of force is related with the direction of the current by the right hand thumb rule.
The rule states :
Curl the four fingers of the right hand on the palm, keeping the thumb stretched out at right angles. The thumb is straight and the fingers are circular.
In case 1. thumb represents the direction of the current in the straight wire and curling of fingers represents the direction of the circular magnetic lines of force.
In case 2. curled fingers represents the direction of the current in circular wire and thumb represents the direction of the straight magnetic lines of force.
Right hand thumb rule for direction of magnetic field.
3. Solenoid :

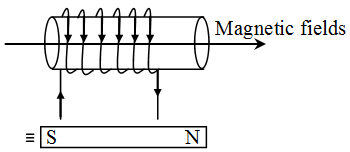

Definition : A solenoid is a straight cylindrical core on which a large number of turns of a insulated copper wire are wrapped. It is shown in fig.
Solenoid carrying a current and polarity of its face.
