Aim
To trace the path of the rays of light through a glass prism.

Materials Required
A glass prism, some drawing pins, white paper, a drawing board, adhesive tape, a protractor, a sharp pencil and a measuring scale.

Theory/Principle
Refraction of Light Through a Prism
Prism is a transparent refracting medium bounded by atleast two lateral surfaces, inclined to each other at certain angle. It has two triangular bases and three rectangular lateral surfaces. The angle between two lateral surfaces is called angle of prism (∠A).

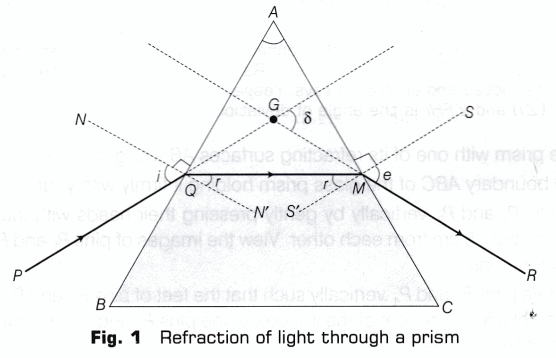

Fig. 1 shows refraction of light through a prism, where,
PQ = incident ray,
QM = refracted ray,
MR = emergent ray,
∠A = angle of prism,
∠i = angle of incidence,
∠r = angle of refraction,
∠e = angle of emergence,
∠δ = angle of deviation.
Note: When a ray of light passes through a prism, it bends towards the thicker part of the prism.

Angle of Deviation (∠δ)
It is the angle which the emergent ray (produced backward) makes with the incident ray (produced forward ). It depends upon angle of prism (∠A), angle of incidence (∠i) and angle of emergence (∠e) and is given by ∠δ = ∠i + ∠e – ∠A.

Procedure

1. Fix a white sheet of paper on a drawing board. Draw a thin line XY at the middle of the paper.
2. Draw a thin line NEN’ perpendicular to the line XY at point of incidence E as given in the figure below. Also, draw a line DE making any angle, preferably between 30° and 60°.

3. Place the prism with one of its refracting surfaces AB along the line XY.
4. Mark the boundary ABC of the glass prism holding it firmly with your hand.
5. Fix two pins P₁ and P₂ vertically by gently pressing their heads with thumb, on line DE at a distance of about 5 cm from each other. View the images of pins P₁ and P₂ from the opposite face AC of the prism.
6. Fix two more pins P₃ and P₄ vertically such that the feet of pins P₃ and P₄ appear to be on the same straight line as the feet of the images of the pins P₁ and P₂ as viewed through the face AC of the prism.
7. Remove the pins and prism. Mark the positions of feet of pins P₃ andP₄ on the sheet of paper.
8. Draw a straight line joining the points that mark the positions of pins P₃ and P₄. Extend this line so that it meets the face AC of the prism at point F. The line FG represents the path of the emergent ray.

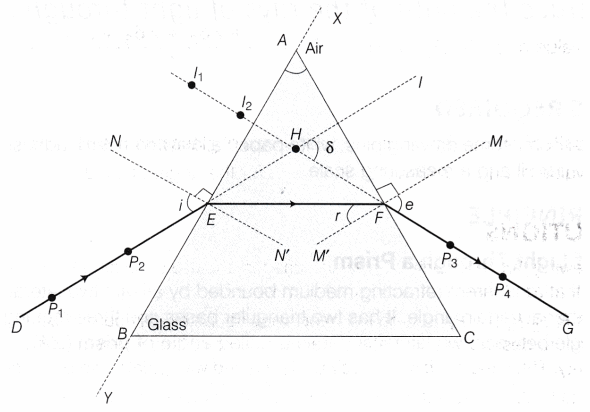

9. Extend the direction of incident ray DE till it meets the face AFC. Also extend backwards the emergent ray FG as given in the figure. These two extended lines meet at point FI (as shown in Fig. 2).
10. Repeat this experiment for more angles of incidence.

Observations and Calculations

Mean value of angle of incidence, ∠i = \(\frac { { \angle i }_{ 1 }+{ \angle }i_{ 2 }+{ \angle i }_{ 3 }+{ \angle i }_{ 4 } }{ 4 }\)
⇒ ∠i = ……………
Mean value of angle of deviation, ∠δ = \(\frac { { \angle \delta }_{ 1 }+{ \angle \delta }_{ 2 }+{ \angle \delta }_{ 3 }+{ \angle \delta }_{ 4 } }{ 4 }\)
⇒ ∠δ = …………..

Result

1. The path of a ray of light incident on one face of glass prism is shown by the ray DEFG in Fig.2.
2. The value of angle of deviation is ………… for the angle of incidence ………………

Precautions

1. While viewing the collinearity of pins and images, the eye should be kept at a distance from the pins so that all of them can be seen simultaneously.
2. The pins P₁, P₂, P₃ and P₄ fixed on the paper may not be exactly perpendicular to the plane of paper. It is therefore desirable to look at the feet of the pins or their images while establishing their collinearity. Thus, the position of each pin is marked with pointed tip of the pins on the paper.
3. In order to locate the direction of incident ray and refracted ray with a greater accuracy, the distance between the pins P₁ and P₂ and that between P₃ and P₄ should not be too short or too large. A separation of nearly 5 cm between the pins would be sufficient.
4. The angle of incidence should preferably be taken between 30° and 60°.

Sources of Error
1. Pins may not be exactly perpendicular to the paper.
2. The feet of the pins may not be in same straight line.
3. In observing images of P₁ and P₂, eye may be very close to the pins.
4. Prism may not be fixed properly.

Viva – Voce

Question 1.
Define angle of deviation. [NCERT]
Answer:
The angle made by the incident ray and emergent ray is called angle of deviation.

Question 2.
List the factors on which the angle of deviation through a prism depend. [NCERT]
Answer:
Factors on which the angle of deviation depends are:

1. Angle of prism
2. Angle of incidence

Question 3.
Why does a ray of light bend towards the base when it passes through a glass prism? [NCERT]
Answer:
When a light ray passes through glass prism, first it travels from rarer to denser medium so, it bends towards the normal or base of prism.

Question 4.
Why does white light split into different colours when passes through a glass prism? [NCERT]
Answer:
The refractive index of different colours is different, when a white light passes through the prism, it shows different deviation and splits into its constituent colours.

Question 5.
Why does white light not split into different colours when it passes through a glass slab? [NCERT]
Answer:
Since, the two faces of glass slab are parallel to each other. Hence, the refracted light rays suffer equal amount of deviation. Thus, they don’t split the white light.

Question 6.
How can you define an angle of prism?
Answer:
The angle between two lateral faces of prism is called an angle of prism.

Question 7.
What precaution must be taken for the refracting faces of glass prism while tracing the path of ray of light through it?
Answer:
The faces’of the glass prism must be smooth and transparent without any air bubble or broken edge.

Question 8.
Name the process by which when a white light passes through a prism splits into its constituent seven colours.
Answer:
Dispersion of light.

Question 9.
Give the range of angle of incidence to complete this experiment accurately and successfully.
Answer:
The range of angle of incidence is 30° to 60°.

Question 10.
What is the relation between angle of incidence (∠i), angle of prism (∠A), angle of deviation (∠δ), and angle of emergence (∠e)?
Answer:
The relation is ∠i + ∠e = ∠A + ∠δ.
